SIMGASM | Pro Aluminum Sim Racing Cockpit - Red
Pro Red: the flagship aluminium-profile platform for maximum structural headroom
The SIMGASM Pro Aluminum Sim Racing Cockpit in Red uses a 40 × 160 mm main profile and has overall dimensions (W × L × H) of 600 × 1350 × 890 mm. Its deeper main profile and heavy-duty steel reinforcement at critical mounting points are intended for demanding direct-drive, braking and motion builds where chassis reserve takes priority over size and weight.
Choose the Pro chassis for its position in the range, then select the wheel mount that matches your wheelbase in the compatibility module.
What is included—and what is not
Included: the aluminium profiles, structural chassis brackets, the wheel-mount option selected at checkout, assembly hardware and tools, white assembly gloves, the assembly guide, the Apex side-profile shifter/handbrake arm, heel rest and rubber feet.
Not included: the seat, seat slider, wheelbase, steering wheel, pedals, shifter or handbrake device, monitor stand, display, motion hardware or actuators unless a bundle or option explicitly states otherwise. Add the dual-locking seat slider when adjustable seat positioning is required.
Why choose Pro instead of Sport?
Sport uses a 40 × 120 mm main profile and is the smaller, lighter value alternative. It carries a 300 kg rated braking load at the pedal deck, integrated cable routing and motion readiness; Pro raises the rating to 400 kg and adds steel reinforcement to the 40 × 160 mm structure. Compare it with the same-finish Sport cockpit.
Red finish with a familiar competition direction
Red gives the cockpit a direct motorsport character and makes the profile structure a visible part of the finished simulator. It is a straightforward choice for drivers who want more presence than black without moving to a multi-colour livery.

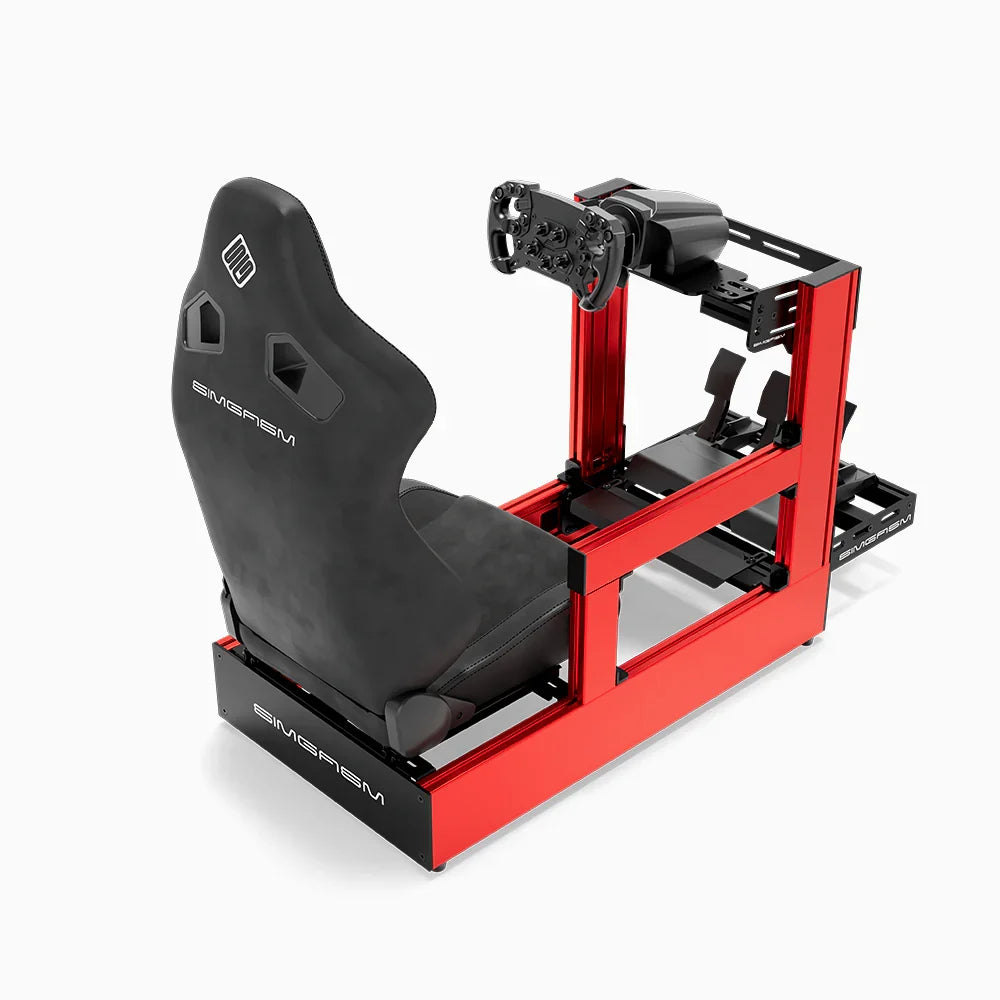

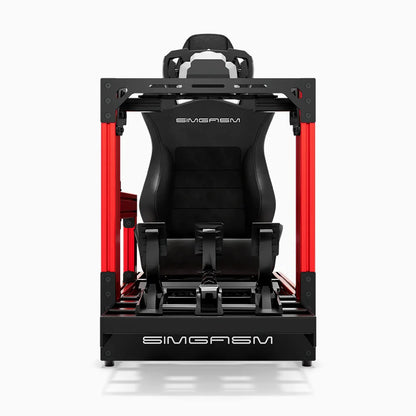

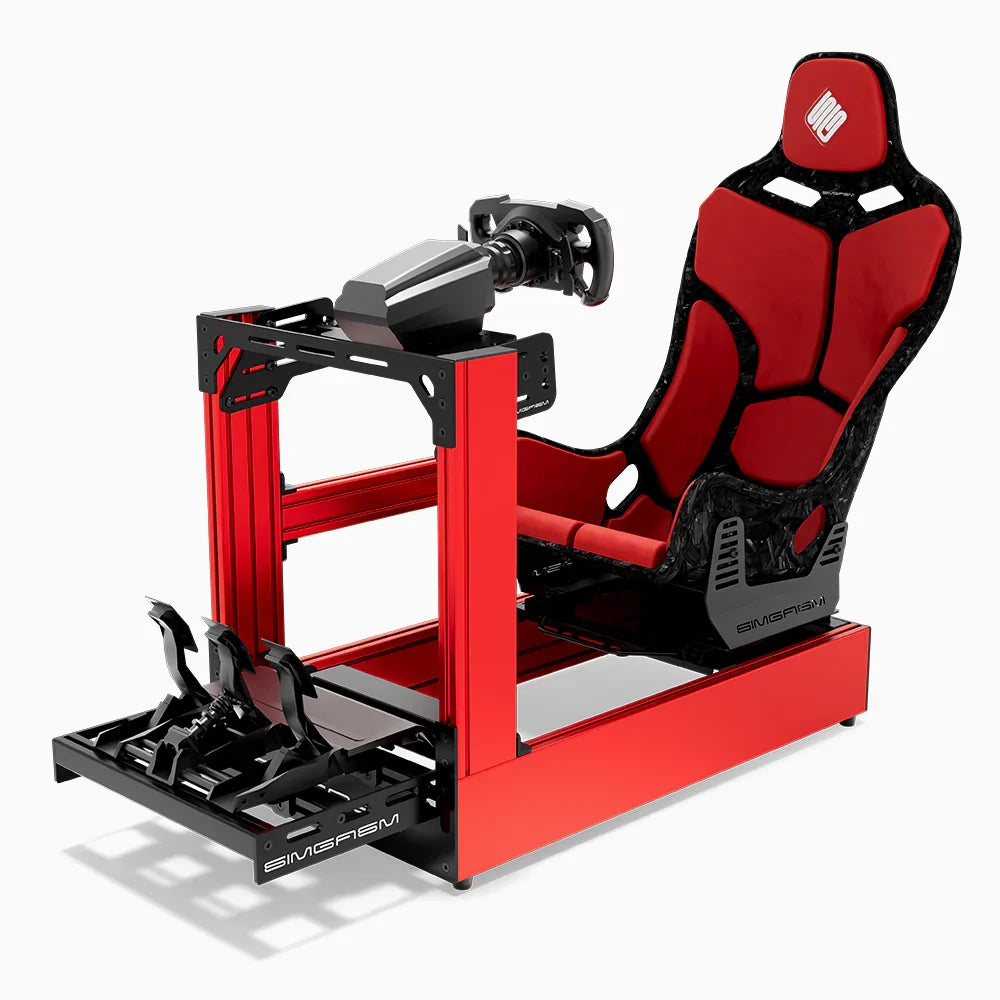

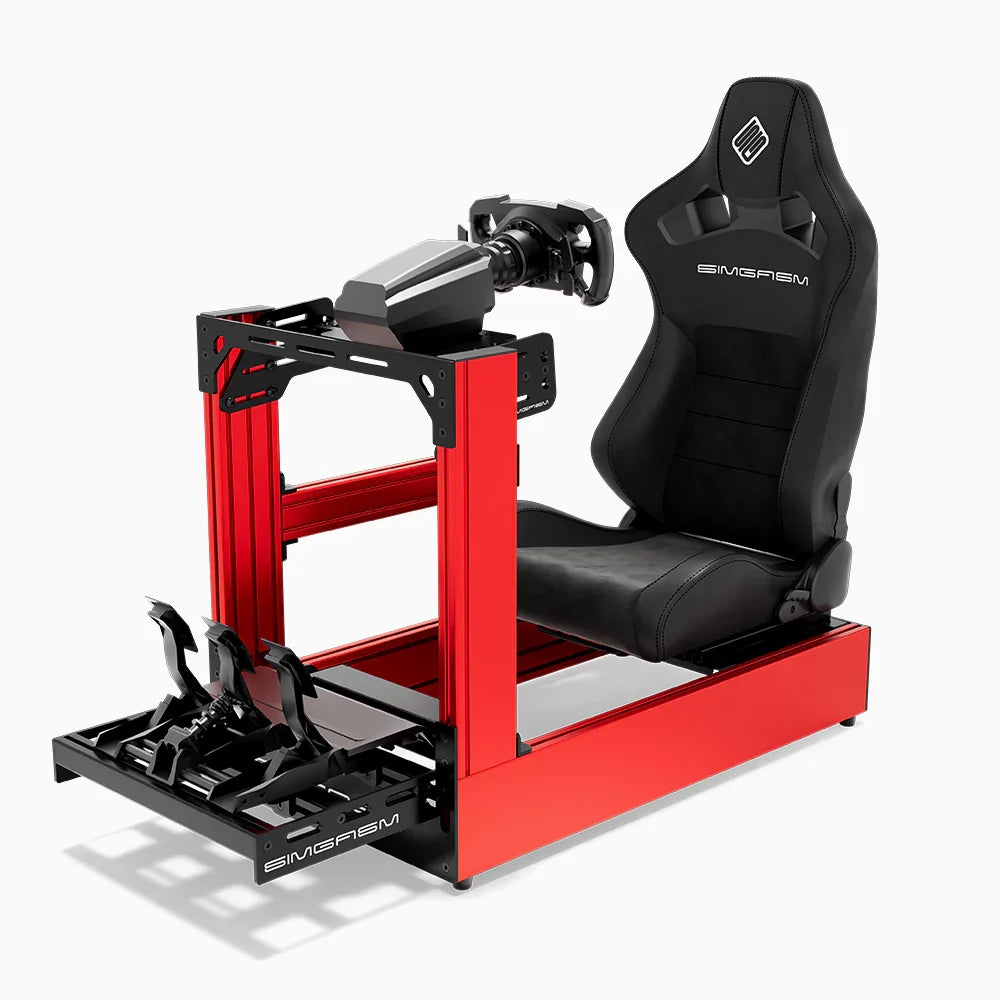

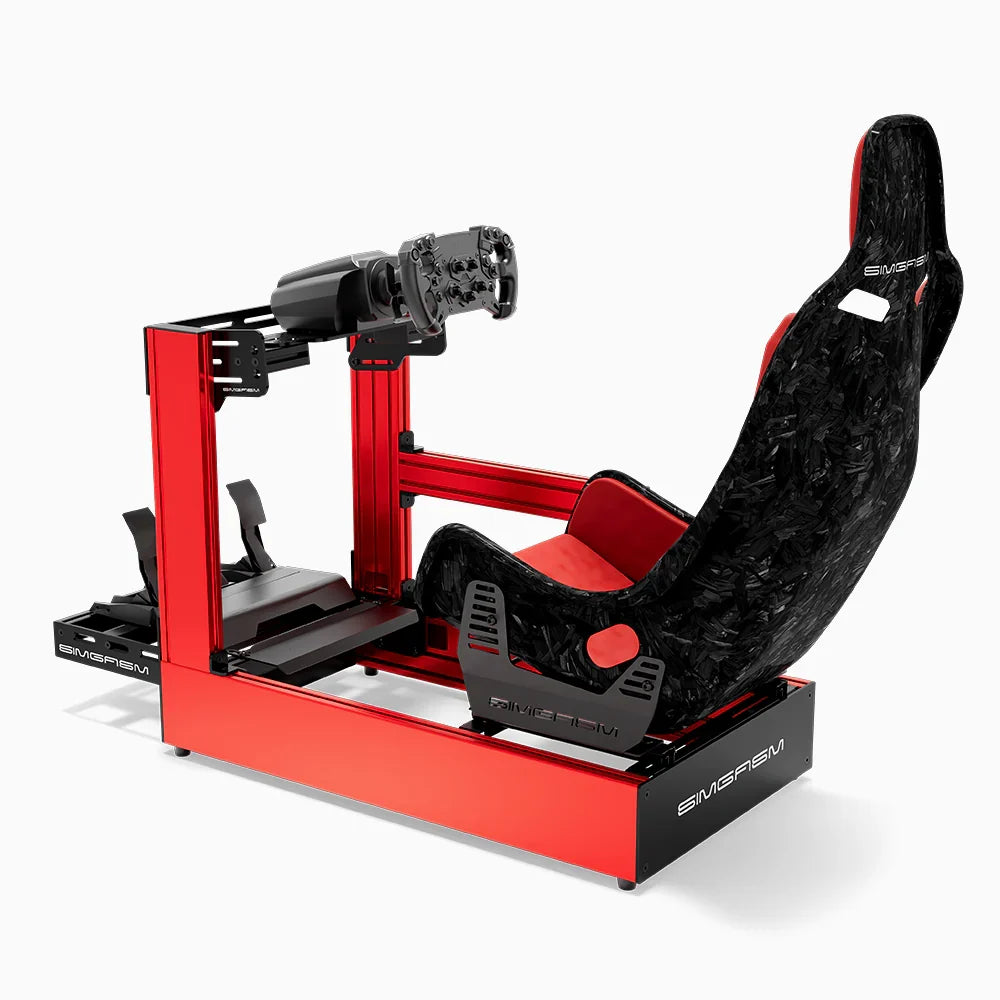

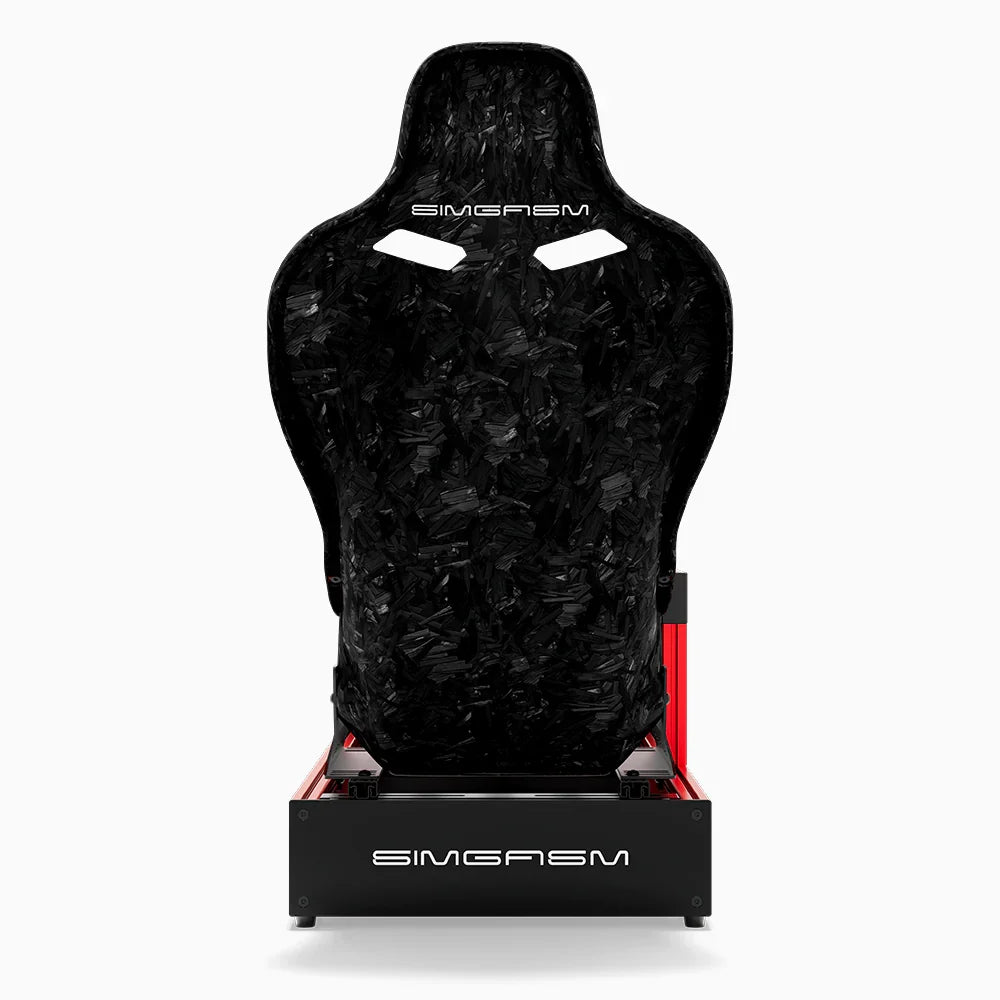

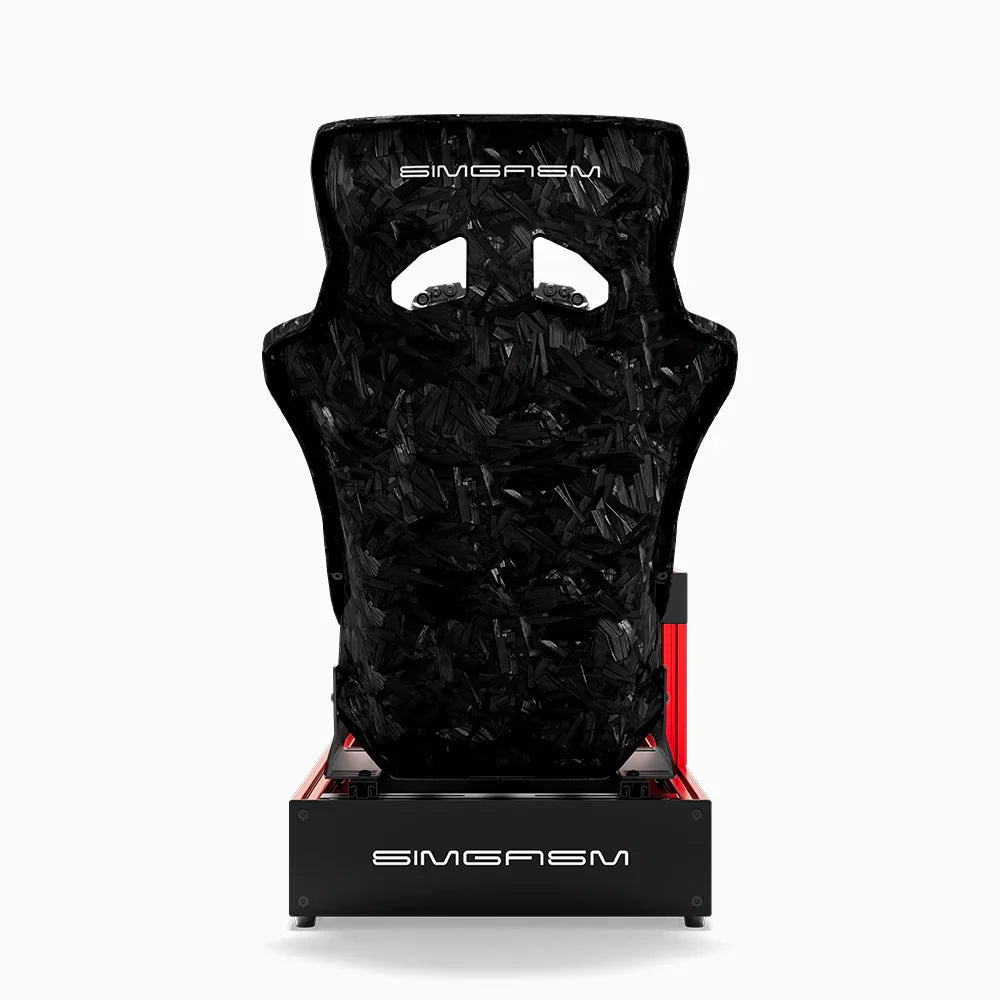

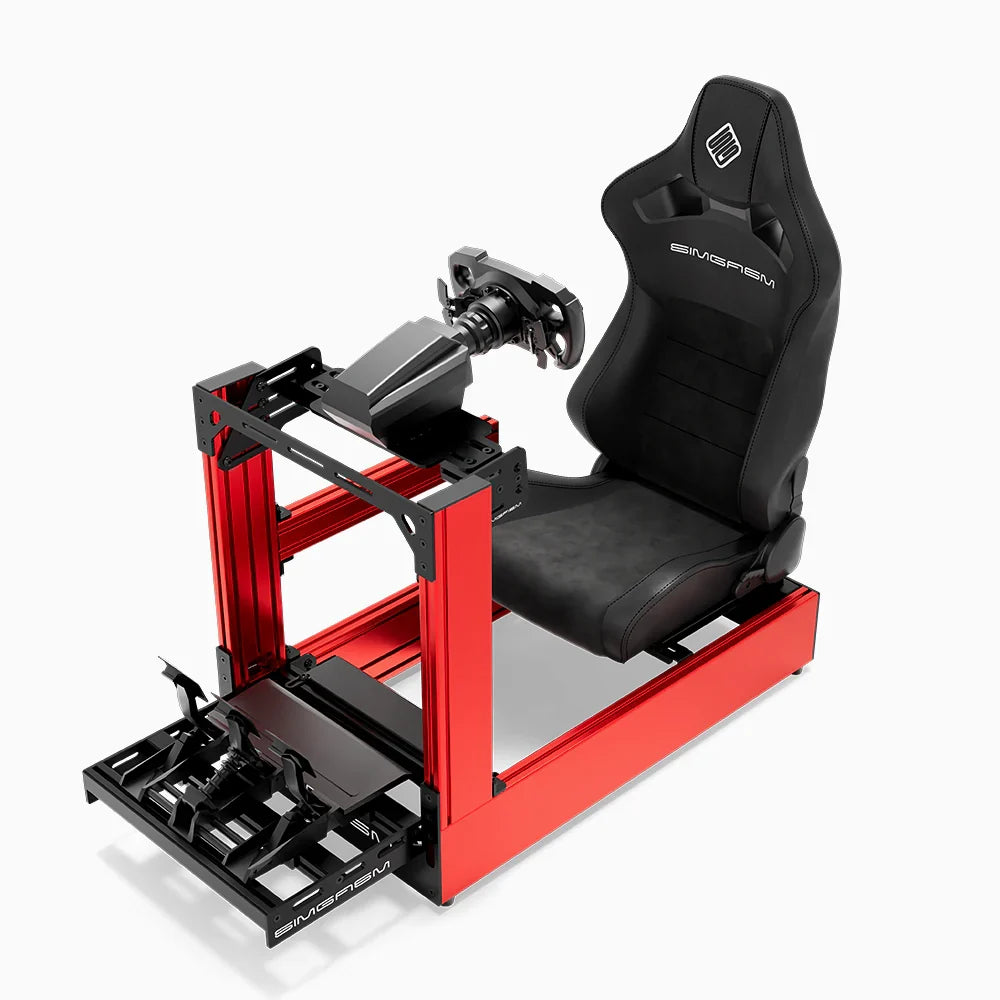

A black seat, wheelbase and monitor system creates the classic red-and-black pairing and keeps the controls easy to read. Small metallic details can add depth without weakening that simple visual theme.
Wheelbase compatibility depends on the selected mount

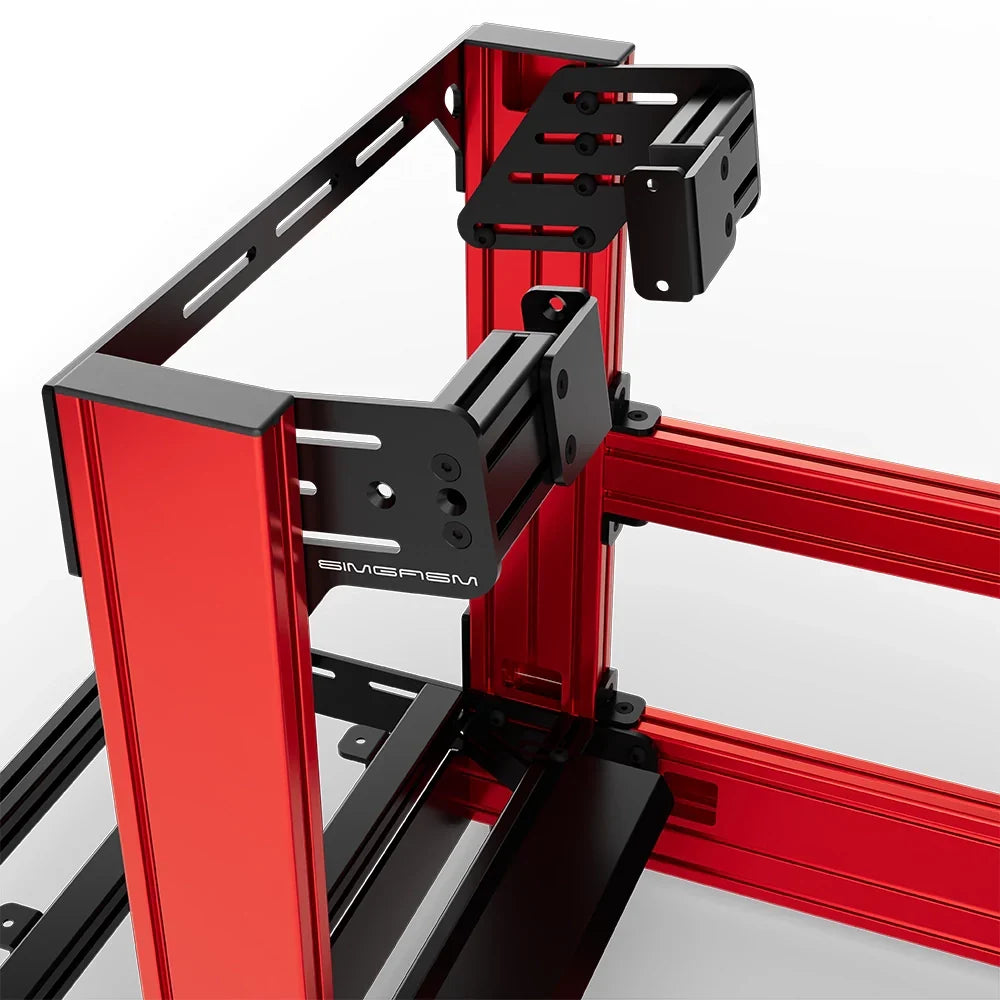

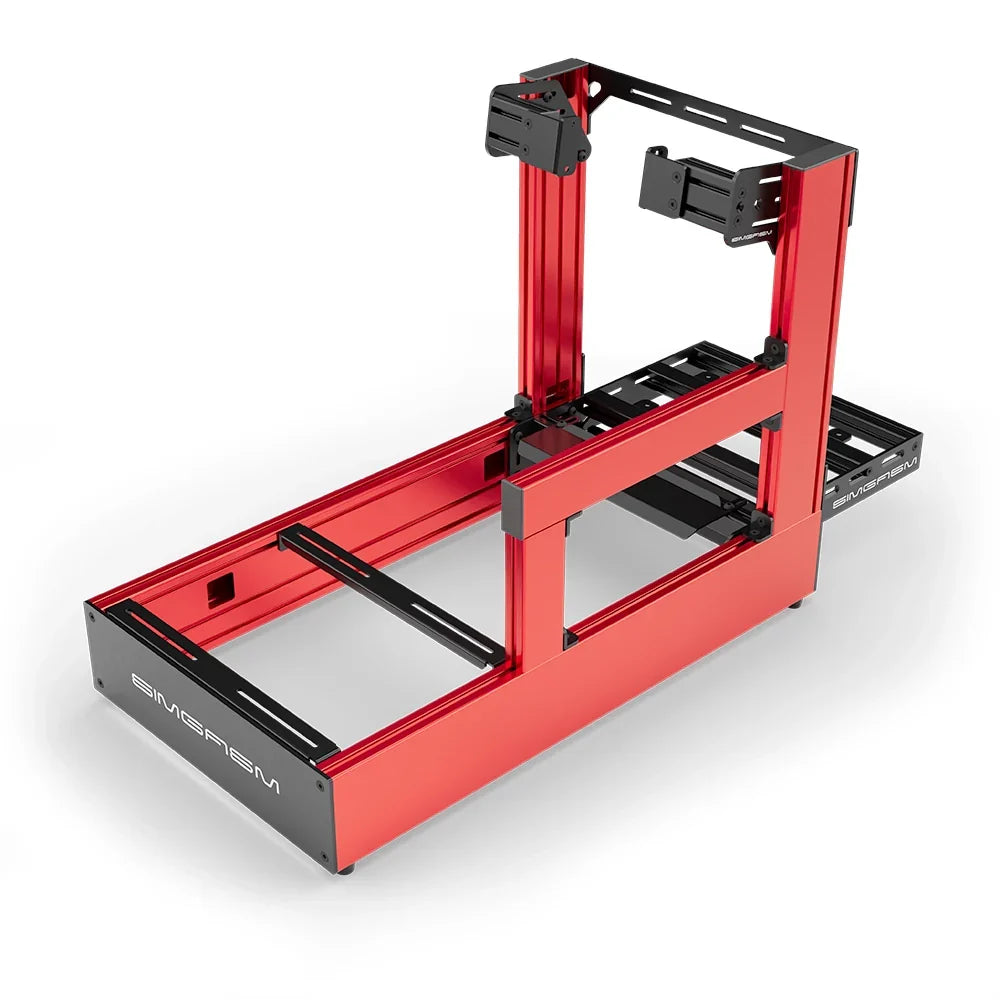

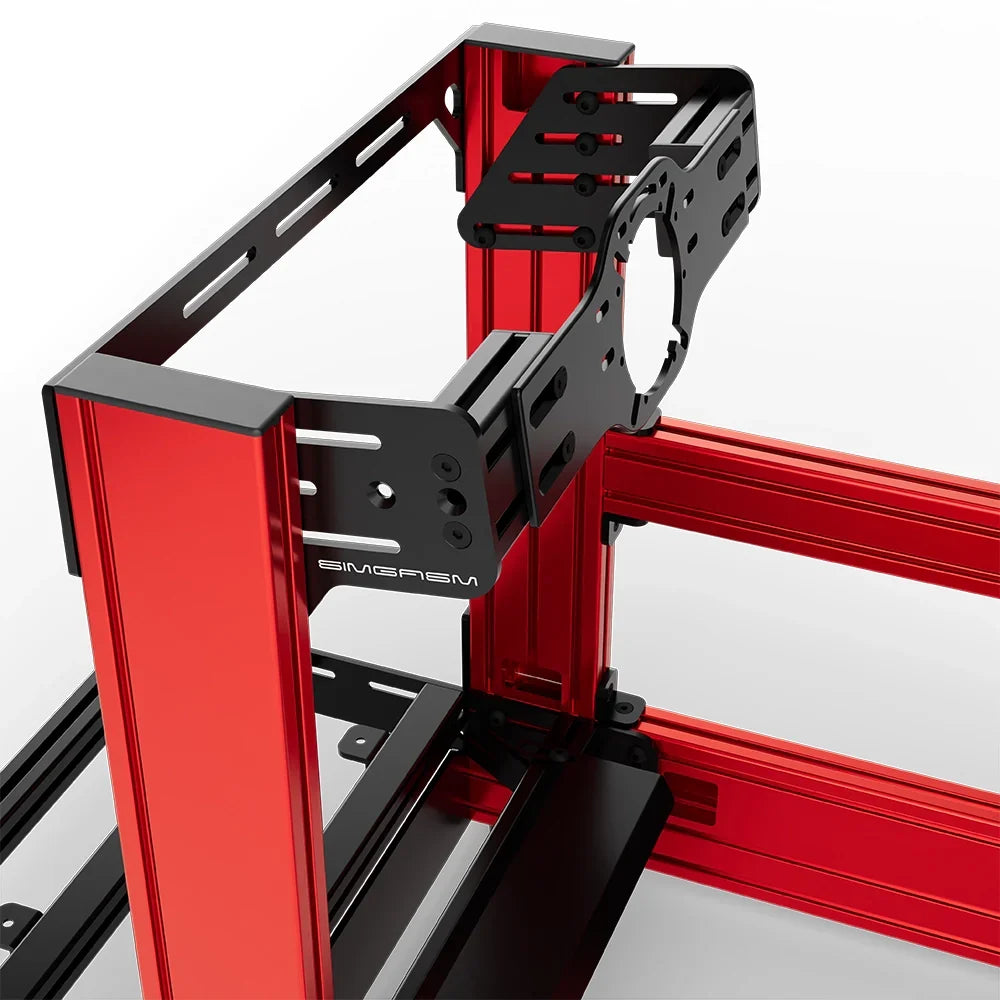

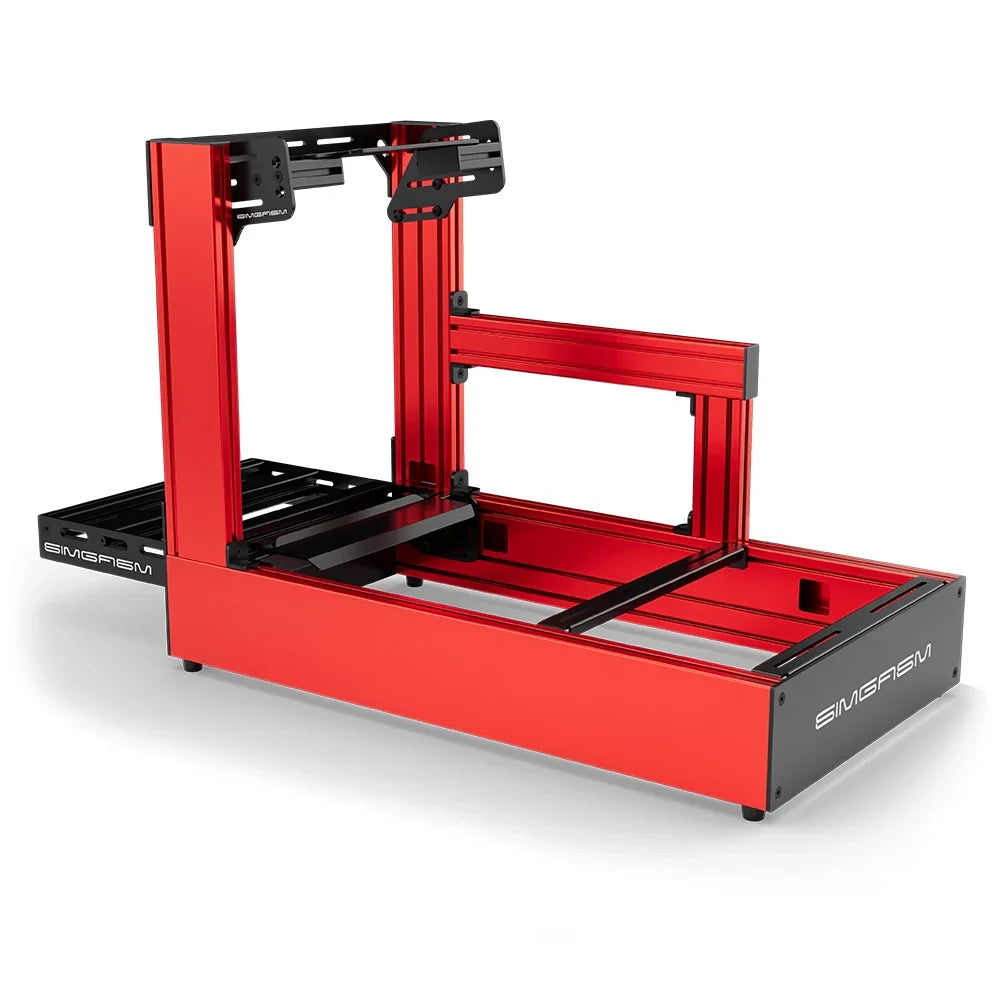

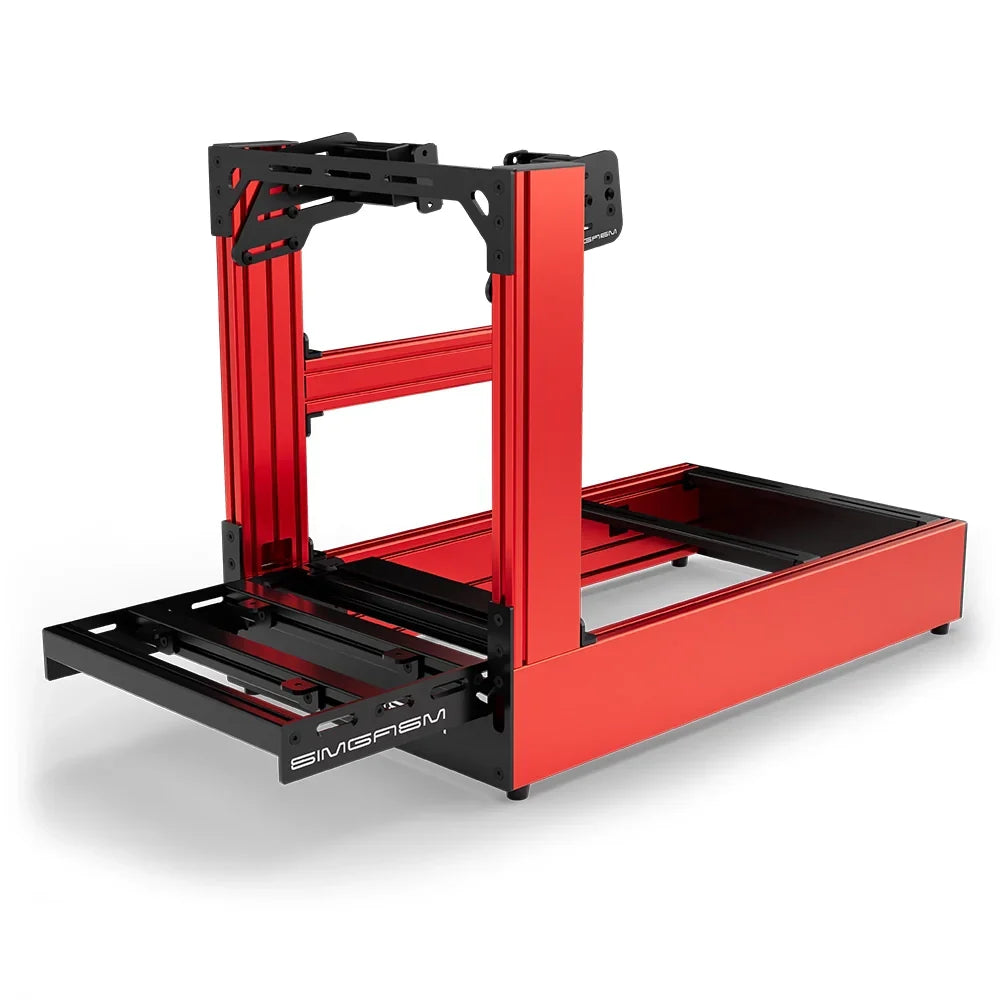

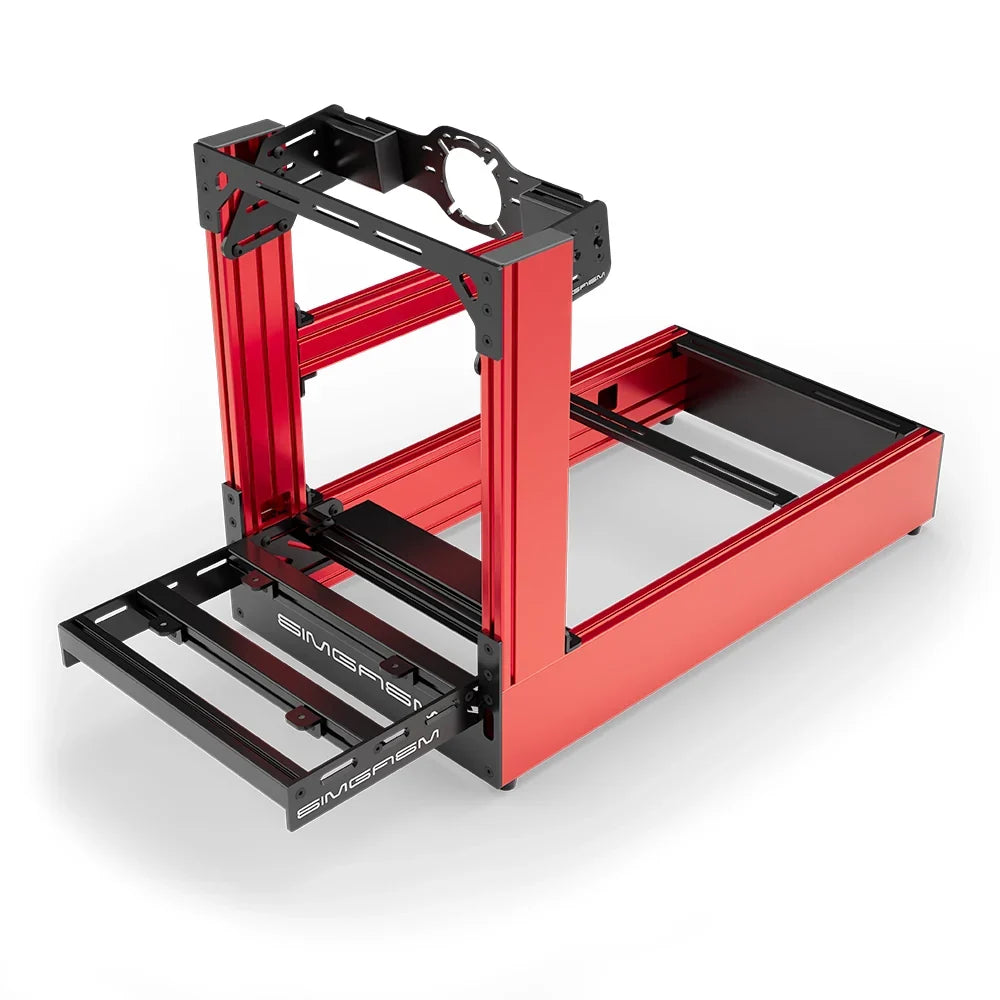

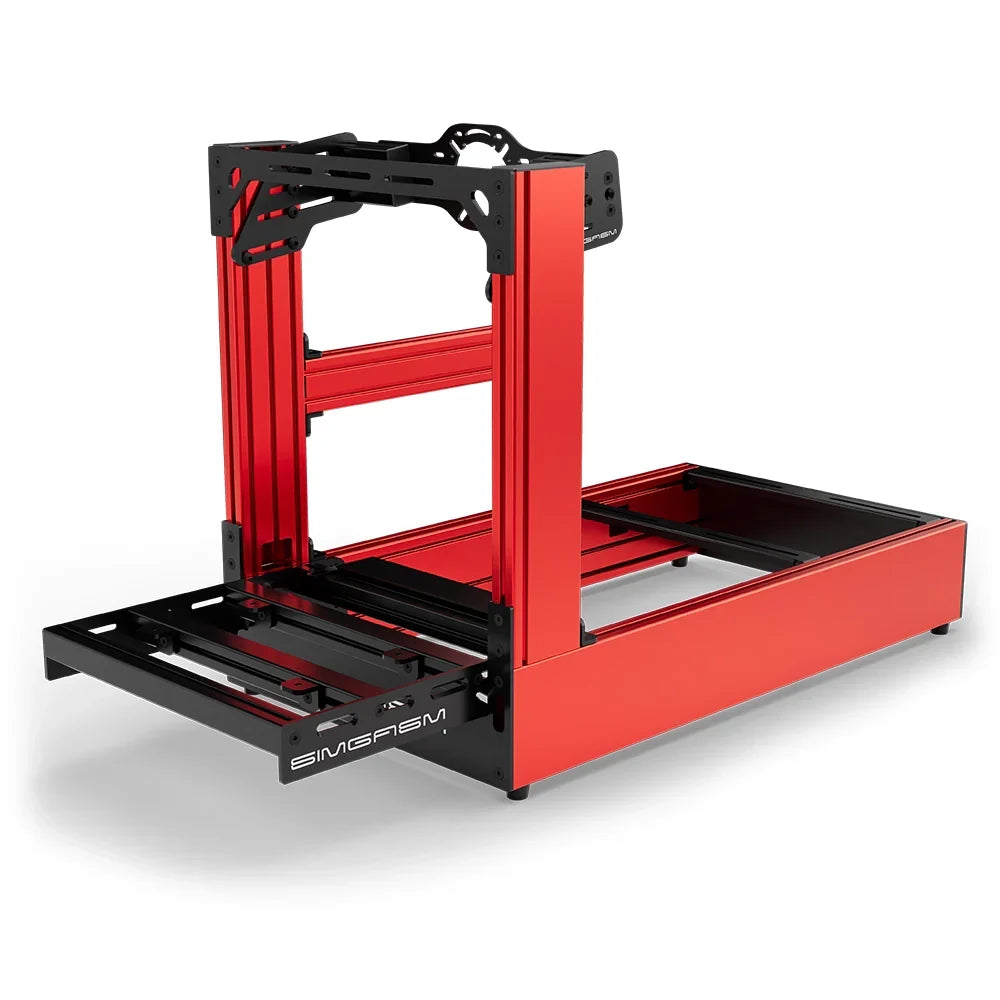

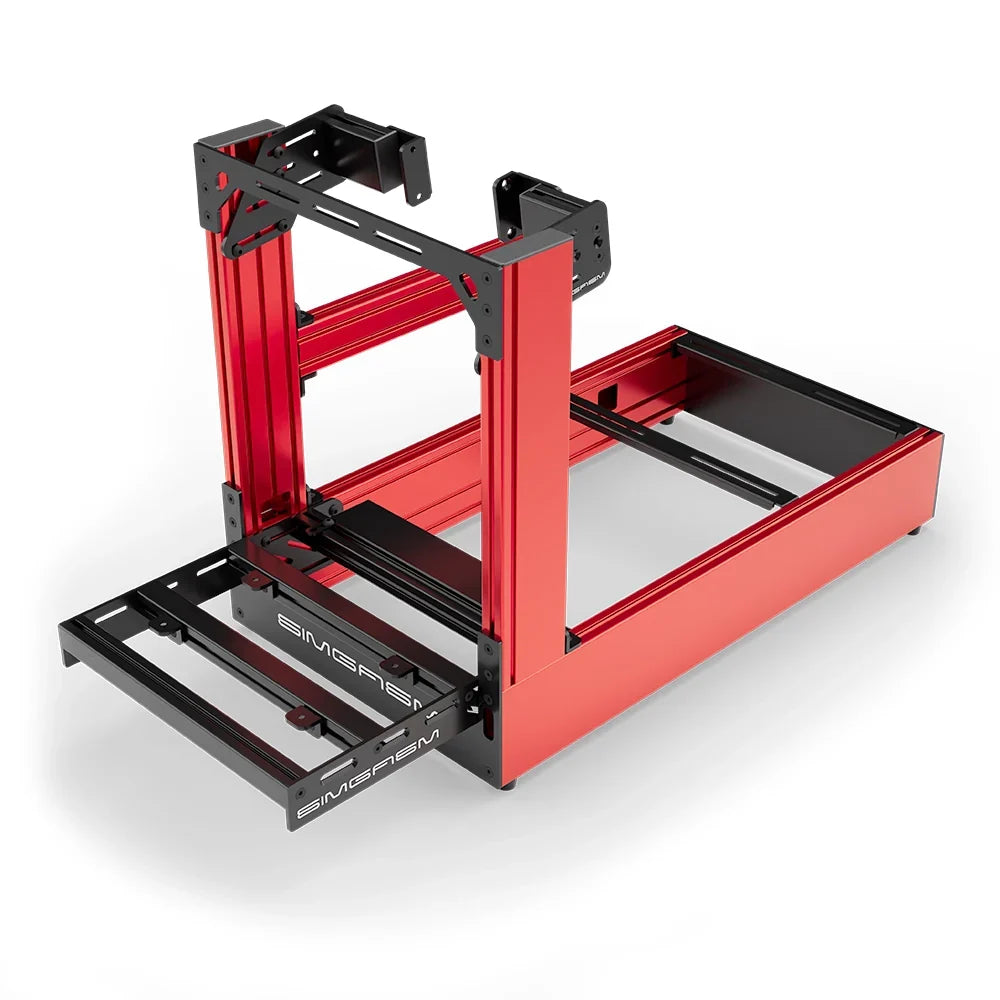

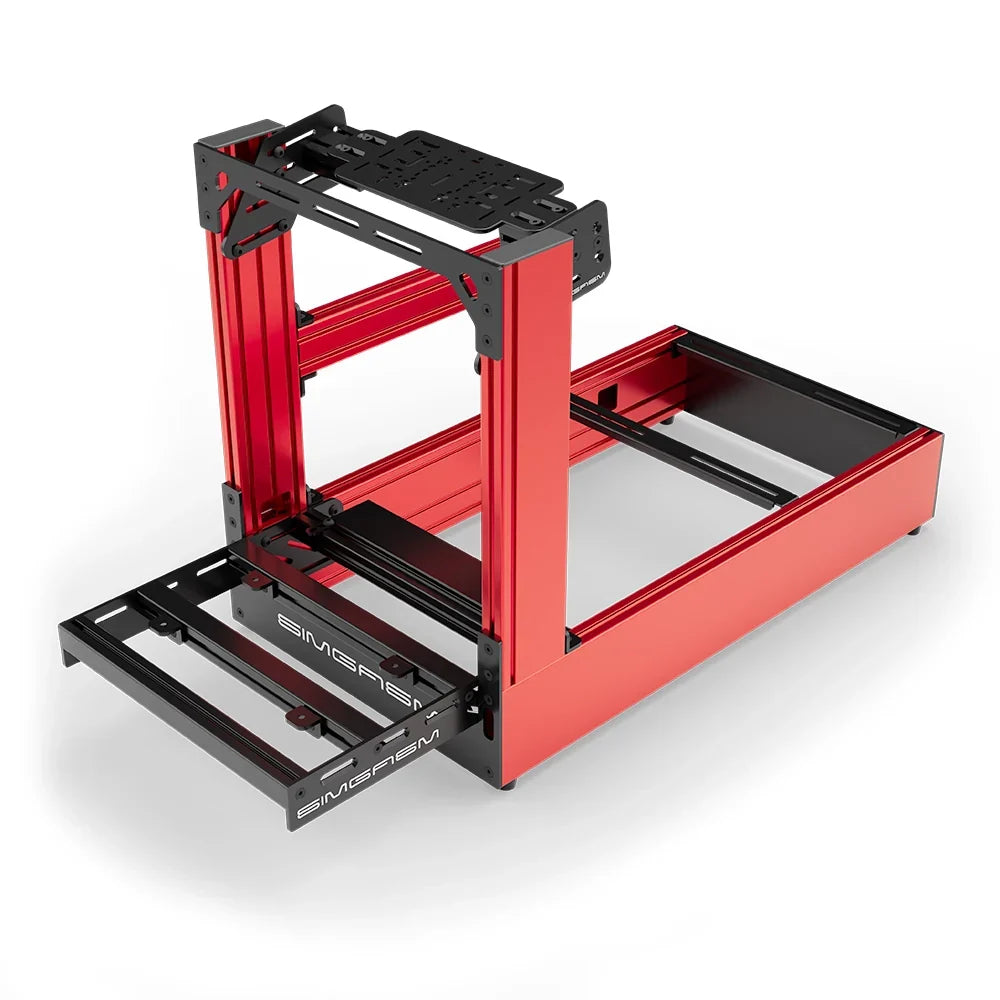

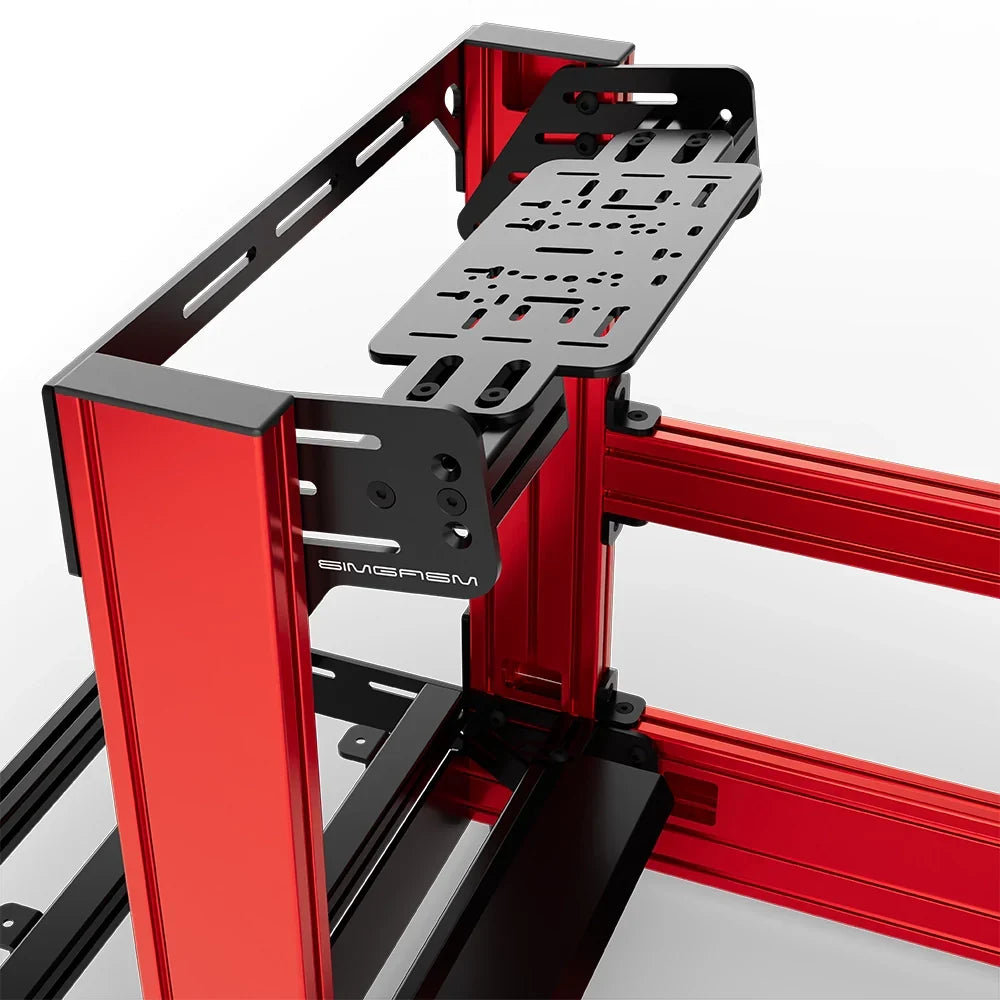

Compatibility is model-specific. Bottom Mount covers supported underside patterns from Logitech, Fanatec, MOZA, Thrustmaster, SIMAGIC, PXN, Simucube, Asetek and VRS. The regular Front Mount covers supported Fanatec, Simucube and VRS front patterns and does not fit any SIMAGIC wheelbase. Side Mount covers supported Fanatec, MOZA and SIMAGIC models, while Asetek Front Mount is dedicated to supported Asetek models. Always use the live selector and detailed model-level table on this page before ordering.
Key Pro comparison facts
- Main profile: 40 × 160 mm
- Overall dimensions (W × L × H): 600 × 1350 × 890 mm

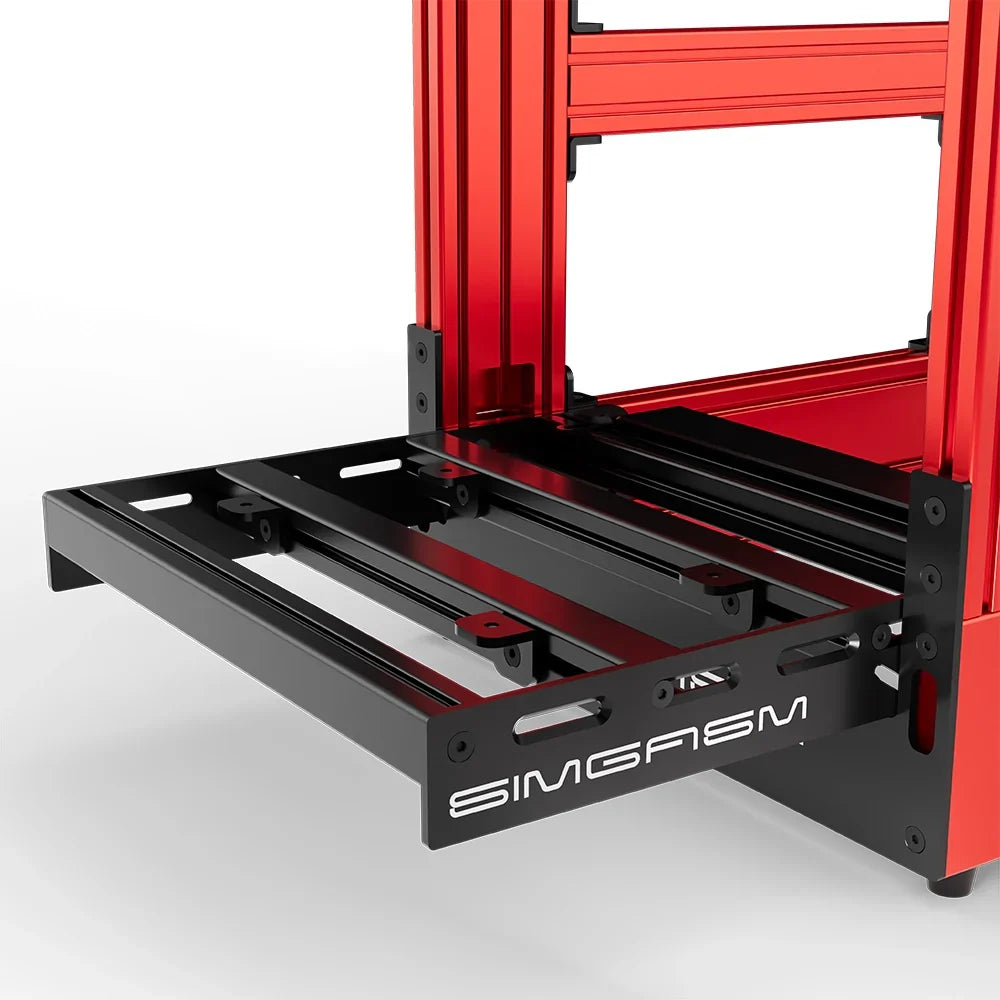

- Rated braking load at the pedal deck: 400 kg
- Integrated cable passthroughs and motion-ready construction

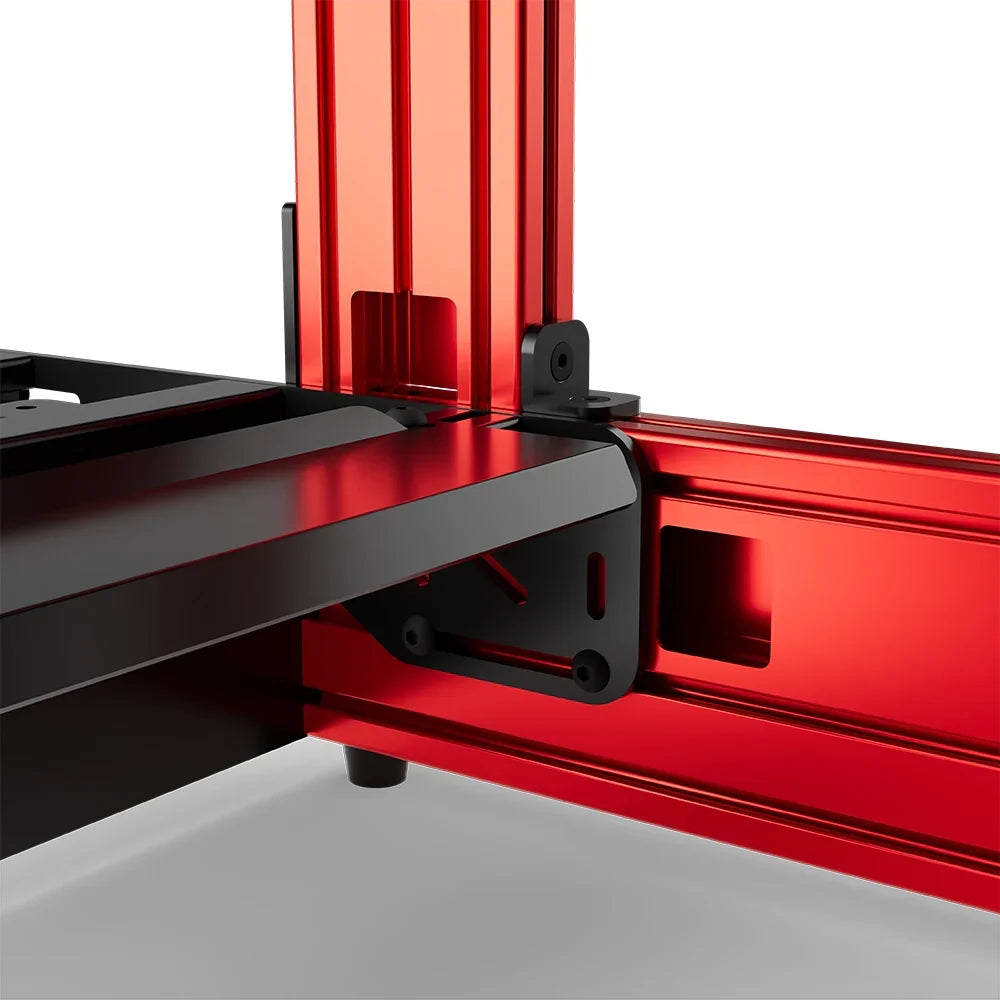

- Heavy-duty steel reinforcement at critical mounting points
- Standard SIMGASM warranty: 2 years
Build a complete Red simulator
Pair the cockpit with the Apex Integrated Single Monitor Stand when you want a directly mounted screen solution. Browse the complete SIMGASM cockpit range to compare the four profile tiers and all available finishes.
